BOILERS

Top Boiler Service and Installation Company in Palatine, IL Serving The Chicagoland Area

ENJOY THE LUXURY OF A TOP-QUALITY BOILER FOR YOUR HOME

Viessmann

High Efficiency Boilers

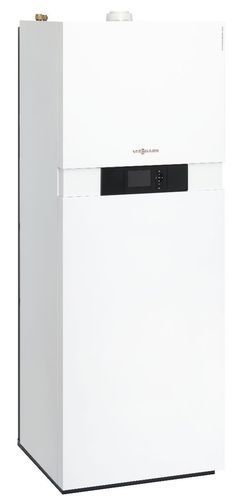

VITODENS 222-F Features

Proven Viessmann technology

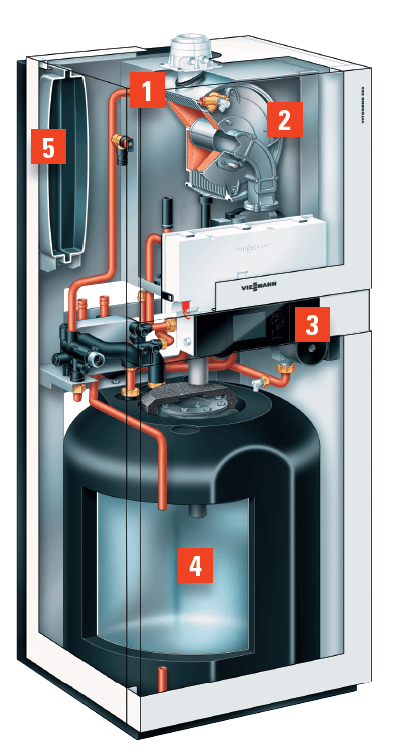

At the heart of the Vitodens 222-F are the Viessmann made SA240 216Ti stainless steel Inox-Radial heat exchanger and low emission MatriX cylinder burner.



The MatriX burner's Lambda Pro combustion management system automatically adapts to changing gas type and quality for optimal efficiency, while the durable stainless steel heat exchager offers exceptional reliability and long service life. Together, they allow optimal heat extraction with minimal heat loss to maximize energy utilization and reduce fuel consumption.

specifications

  • Viessmann made SA240 316Ti stainless stell Inox-Radial heat exchanger constructed to CSA B51 and ASME Section IV
  • Viessmann made stainless steel MatriX cylinder burner with Lambda Pro combustion management system for continuous efficiency and low emissions
  • 2 models with input ranges from 12 to 125 MBH
  • Efficiency up to 98% at full modulation and 95% AFUE
  • Viessmann made SA240 316Ti stainless steel DHW storage tank (26 USG)
  • Innovative DHW Storage Tank Loading System comprised of plate heat exchange, DHW loading pump and storage tank
  • Zero side clearance requirement
  • Pre-installed pressure / temperature relief valves
  • Fully enclosed heating expansion tank and circulation pump
  • Built-in 3-speed DHW / space heating pump with diverter valve
  • Suitable for altitude levels up to 10,000 ft. / 3,000 m
  • Fast heat-up with Storage Tank Loading System
  • 10-minute peak flow of 60 gallons (model B2TB-35 only)
  • Continuous DHW draw of 3.3 GPM
  • Wide modulation ratio up to 6.1:1
  • Multiple venting options with vent length up to 180 ft.

vitocell 300

Experience VIESSMANN hot water technology! Comfort, convenience and reliability in one package. Available in vertical and horizontal designs, from 42 to 120 USG / 160 to 450 liters. See how you can improve your domestic hot water comfort today.


  • Lifetime warranty for all Vitocell 300 DHW tanks
  • Fast recovery rates ensure abundant supply of domestic hot water all day long.*
  • High level of operational reliability and a long service life due to high alloy stainless steel construction
  • High-performance insulation keeps standby losses and operating cost at a minimum.
  • Extremely efficient indirect hot water production by boiler. Save up to 50% of your operating cost compared to conventional direct-fired hot water production.
  • Tank coil extends to tank bottom guaranteeing even water temperatures at all times.
  • Scale- and corrosion-resistant, ideal for areas with poor water quality.

VIcare app vitoconnect 100

Stay WiFi connected, comfortable and in control with Vitoconnect 100 and ViCare App. The ViCare app and WiFi-ready Vitoconnect 100 are designed to save time, money and energy with remote Internet connectivity and automatic operation. ViCare and teh Vitoconnect 100 allows smartphone and tablet users to easily monitor and program their Viessmann boiler, and stay in control anytime, anywhere via the internet.

WiFi access required*
