Professionally Installed Heat Pumps For Your Home or Business! Give Us A Call Today! We’re in Palatine, IL and Surrounding Chicagoland Area

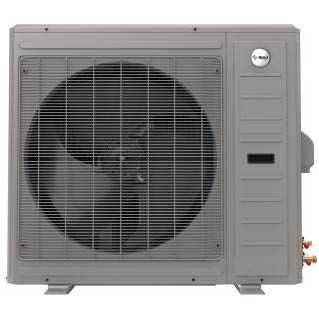

• Cooling Efficiencies up to 14 SEER/11.5 EER
• Heating Efficiencies up to 8.2 HSPF
• Single-stage scroll compressor - uses 70% fewer moving parts for higher efficiency and increased reliability
• Optimized fan orifice – optimizes airflow and reduces unit sound
• New composite base pan – dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
• Powder coat paint system – for a long-lasting professional finish
• Curved louver panels – provide ultimate coil protection, enhance cabinet strength, and increased cabinet rigidity
• 10-Year Parts, as per manufacturer

• Cooling Efficiencies up to 16 SEER/13 EER
• Heating Efficiencies up to 9 HSPF
• Two-stage scroll compressor – a sound abating feature added to the compressor significantly reduces noise when system transitions in and out of defrost mode
• Optimized defrost characteristics - decrease defrosting and provide better home comfort
• Optimized reversing valve sizing – improves shifting performance for quieter unit operation and increased life of the system
• Optimized fan orifice – optimizes airflow and reduces unit sound
• New composite base pan – dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
• 10-Year Parts, as per manufacturer

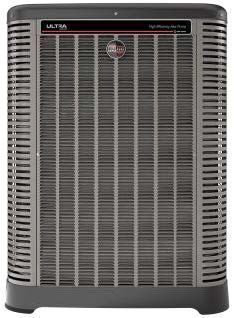

• Cooling Efficiencies up to 20 SEER/14 EER
• Heating Efficiencies up to 11.5 HSPF
• The inverter-driven, variable-speed scroll compressor with modulating technology, which provides more precise temperature control, lower humidity, greater efficiency, saves energy, and maintains optimal comfort level. The overdrive feature provides cooling load up to 107°F and heating load down to 7°F.
• The EcoNet Home Comfort Control makes it easy for homeowners to control their home comfort equipment at home or on the go. *
• Equipped with electronic expansion valve to precisely control variable refrigerant flow.
• Optimized defrost characteristics - decrease defrosting and provide better home comfort
• Optimized reversing valve sizing – improves shifting performance for quieter unit operation and increased life of the system
• Enhanced mufflers – help to dissipate vibration energy for quieter unit operation
• Optimized fan orifice – optimizes airflow and reduces unit sound
• High- and low-pressure standard on all models.
• 10-Year Parts, as per the manufacturer.
• 10-Year Conditional Unit Replacement, as per the manufacturer.

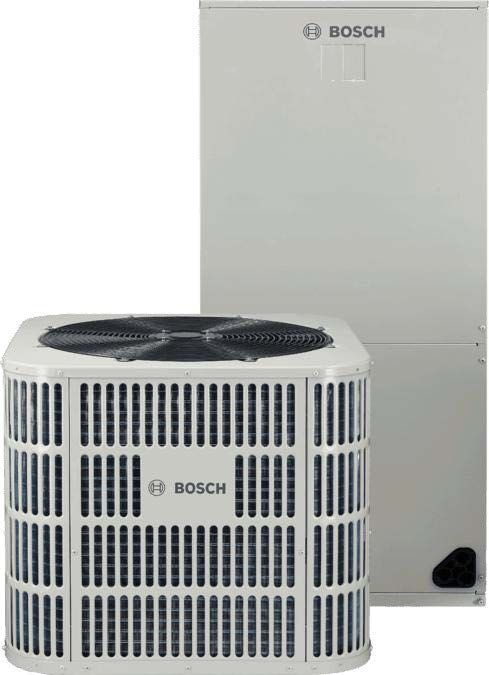

The Bosch Inverter Ducted Split system provides supremely efficient comfort by adjusting operating speeds rather than a simple on/off control like other units, thereby reducing operating costs and saving you money. These robust and durable units are made with the Bosch quality you expect and deserve. The system’s intelligent features work in tandem with your thermostat to automatically learn your preferences, while integrated sound dampening features keep the units nice and quiet for your peace of mind.

Features:

• Ultra-effcient inverter drive system delivers up to 18.5 SEER/9.5 HSPF outperforming less efficient 1 and 2-stage systems
• Fully modulating inverter drive
• Variable capacity control to precisely match the cooling/heating load - no more, no less
• One of the quietest and most compact air-to-air systens with outdoor sound levels as low as 56 dBA(1)
• Delivers ultimate comfort through stable room temperature using your choice of thermostat
• 10-year Parts Residential Limited Warranty, as per manufacturer
• Smoothly ramps up operation, which avoids spikes in energy use and prtects the system's life cycle

The Bosch Inverter Ducted Split system provides supremely efficient comfort by adjusting compressor capacity rather than a simple on/off control like other units, thereby reducing operating costs and saving you money.  With enhanced humidity control and higher efficiency, the performance of the IDS 2.0 system provides you with the maximum comfort with the minimum energy usage!  The systems intelligent features work in tandem with your thermostat to automatically adjust to your preferences, while integrated sound dampening features keep the units nice and quiet for your peace of mind.

Features:

• Premium efficiency - Up to 20.5 SEER and 10.5 HSPF
• Fully modulating inverter drive
• 10 Speed ECM outdoor blower for whisper quiet and effcient operation - as low as 56 dBA
• Two-stage x13 ECM blower for enhanced humidity control
• Easy to install - compatible with most standard 24 VAC heat pump thermostats
• 10-year Residential Limited Warranty

Conventional heat pumps frequently cycle on and off, resulting in uncomfortable temperature fluctuations. While inverter-driven pumps are able to self-adjust, providing consistent room temperature, even when the outdoor temperature dips to 50F

It takes traditional systems a long time to reach the homeowner’s desired temperature, while the boosted compressor speed of inverter systems allows for quicker, smoother and more efficient heating and cooling.

The Bosch Inverter Ducted Split system is one of the quietest air-to-air systems on the market. Through the use of and outdoor condensing section placement - the system can deliver outdoor sound levels as low as 56 dBA - which is far superior to any standard system on the market.

The frequent on and off of traditional units creates an in-rush current surge which uses more energy and causes unneeded wear and tear on your system. The Bosch inverter system smoothly ramps up operation, avoiding spikes in energy use and protecting the system’s life-cycle.

Modulating inverter systems deliver only the amount of hot or cool air needed to achieve the desired temperature – no more, no less. With an 18.5 SEER and 9.5 HSPF, the Inverter Ducted Split system can provide you with maximum comfort levels at a minimum cost.

The system, along with an appropriate thermostat,

can learn your preferences and adjust the output

capacity to match your ideal temperature levels.

The units are also compatible with most traditional

24 VAC thermostats
